UK Bivariate Map

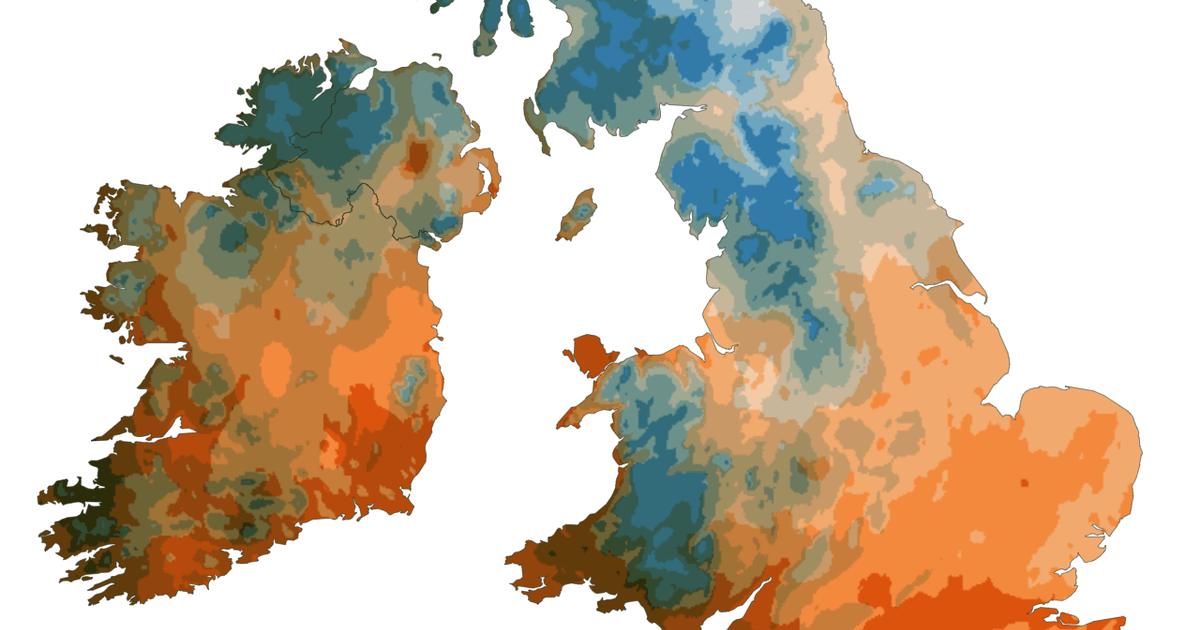

Inspired by Muhammad Mohsin Raza’s Creating Professional Bivariate Maps in R article, I wanted to see how to create a similar map with Observable Plot. Here is the result:

To create this map, we need to fetch some temperature and precipitation data. This guide indicates the proper way to download NetCDF files from the University of Idaho’s TerraClimate repository. We make this query in a parameterized data loader, which retrieves one file for each dimension: ppt — precipitation; and tmin, tmax — the minimum and maximum temperatures (we’ll derive temp as the midpoint of these two values).

var=${1#--variable=}
LAT_MIN=49.674
LON_MIN=-14.015517
LAT_MAX=61.061
LON_MAX=2.0919117

curl -f "http://thredds.northwestknowledge.net:8080/thredds/ncss/agg_terraclimate_${var}_1958_CurrentYear_GLOBE.nc?var=${var}&south=${LAT_MIN}&north=${LAT_MAX}&west=${LON_MIN}&east=${LON_MAX}&disableProjSubset=on&addLatLon=true&horizStride=1&accept=netcdf"

We parse these files as NetCDF and extract their values into two arrays (temp, the midpoint of tmin and tmax; and ppt). The geographic coordinates of each data point are taken from the tmax file (it could be any of the three files, since they are all sharing the same coordinates).

import {NetCDFReader} from "npm:netcdfjs";

function cdf(buffer) {
  return new NetCDFReader(buffer);
}

const _tmax = FileAttachment("/data/climate/tmax.nc").arrayBuffer().then(cdf);
const _tmin = FileAttachment("/data/climate/tmin.nc").arrayBuffer().then(cdf);
const _ppt = FileAttachment("/data/climate/ppt.nc").arrayBuffer().then(cdf);

const tmax = Float32Array.from(_tmax.getDataVariable("tmax"), d => d !== -32768 ? d * 0.01 - 99 : NaN);
const tmin = Float32Array.from(_tmin.getDataVariable("tmin"), d => d !== -32768 ? d * 0.01 - 99 : NaN);
const ppt = Float32Array.from(_ppt.getDataVariable("ppt"), d => d !== -2147483648 ? d * 0.1 : NaN).map(d => d < 10 ? NaN : d);

const lx = _tmax.getDataVariable("lon");
const ly = _tmax.getDataVariable("lat");
const l = lx.length;

const temp = tmax.map((max, i) => (max + tmin[i]) / 2);
const lon = (d, i) => lx[i % l];
const lat = (d, i) => ly[i/ l | 0];

We need an outline of the land, and a (not yet released) version of Plot that can clip marks based on that outline:

const land = fetch(
  import.meta.resolve("npm:world-atlas@2/countries-10m.json")
)
  .then((response) => response.json())
  .then((world) => topojson.feature(world, {
    type: "GeometryCollection",
    // Maldives has a wrong winding order.
    geometries: world.objects.countries.geometries
      .filter(({properties: {name}}) => name !== "Maldives")
  }));

import * as Plot from "/plot.js";

The bivariate color scale takes n quantiles of temperature and n quantiles of precipitation; it maps n × n numbers to the same number of blended colors, organized in a matrix:

const n = 5;

The colors are a mix of oranges (for temperatures) and blues (for precipitation). To mix the colors, we use a formula similar to the multiply mix-blend mode, but tweak it a little to make the colors a bit more lively.

const oranges = d3.schemeOranges[n + 1].slice(0, -1);
const blues = d3.schemeBlues[n + 1].slice(0, -1);

const color = {
  domain: d3.range(n * n),
  range: d3.cross(blues, oranges).map(mixblend)
};

function mixblend([a, b]) {
  a = d3.rgb(a);
  b = d3.rgb(b);
  const l = Math.min(250, b.r + b.g + b.b);
  a.r *= b.r / l;
  a.g *= b.g / l;
  a.b *= b.b / l;
  return a.hex();
}

For example, if a data point belongs to the third quantile (2) of variable A and the second quantile (1) of variable B, its color index is 2 × n + 1 = .

The combined color matrix is shown below—in a mini-chart that will be used as a legend.

const legend = () =>
  Plot.plot({
    color,
    axis: null,
    margin: 0,
    inset: 18,
    width: 136,
    height: 136,
    y: {reverse: true},
    marks: [
      Plot.cell(d3.cross(d3.range(n), d3.range(n)), {
        x: ([a, b]) => a,
        y: ([a, b]) => b,
        fill: ([a, b]) => n * a + b,
        inset: -1,
      }),
      Plot.text(["Precipitation →"], {
        frameAnchor: "bottom-right",
        fontWeight: "bold",
        dx: -18,
        dy: -6,
      }),
      Plot.text(["← Temperature"], {
        frameAnchor: "top-left",
        fontWeight: "bold",
        rotate: 90,
        dx: 12,
        dy: 18
      })
    ]
  });

display(legend());

The most crucial step is the bivariate spatial interpolator — a function that computes an interpolated raster for each of the variables separately, then returns a raster of combined color index.

function interpolateBivariate(n, v1, v2) {
  const r = d3.range(n);
  const s1 = d3.scaleQuantile(v1, r);
  const s2 = d3.scaleQuantile(v2, r);
  const interpolate = Plot.interpolatorBarycentric();
  return function(I, w, h, X, Y) {
    I = I.filter((i) => !isNaN(v1[i]) && !isNaN(v2[i]));
    const V1 = interpolate(I, w, h, X, Y, v1);
    const V2 = interpolate(I, w, h, X, Y, v2);
    return Uint8Array.from(V1, (_, i) => n * s1(V1[i]) + s2(V2[i]));
  }
}

We’ll set up the map projection:

const projection = {
  type: "transverse-mercator",
  domain: {
    type:"MultiPoint",
    coordinates: [
      [-10.5, 49.5],
      [2, 49.5],
      [-10.5, 61],
      [2, 61]
    ]
  },
  rotate: [4, 0]
};

And finally we can create the map:

const map = Plot.plot({
  projection,
  color,
  marks: [
    Plot.raster({length: ppt.length}, {
      x: lon,
      y: lat,
      fill: 0,
      interpolate: interpolateBivariate(n, ppt, temp),
      clip: land
    }),
    () => svg`<g style="transform: translate(0,100px)rotate(-45deg);">${legend()}`,
    Plot.geo(land, {strokeWidth: 0.25}),
  ]
})
