DuckDB histogram

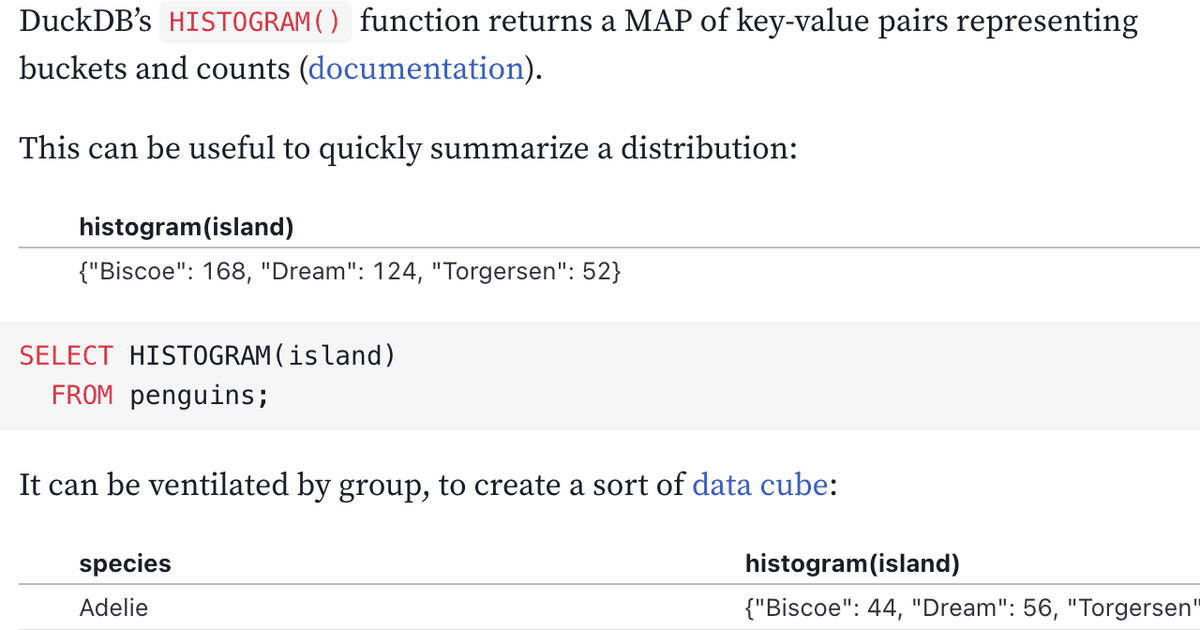

DuckDB’s HISTOGRAM() function returns a MAP of key-value pairs representing buckets and counts (documentation).

This can be useful to quickly summarize a distribution:

SELECT HISTOGRAM(island)
  FROM penguins;

It can be ventilated by group, to create a sort of data cube:

SELECT species
     , HISTOGRAM(island)
  FROM penguins
 GROUP BY 1
 ORDER BY 1;

To count NULL values, we can use COALESCE (we also increase the granularity of the grouping):

SELECT species
     , island
     , HISTOGRAM(COALESCE(sex, 'N/A'))
  FROM penguins
 GROUP BY 1, 2
 ORDER BY 1, 2;

Retrieving totals

Now, suppose we have saved this granular summary data as a very compact parquet file —loaded as a table named penguins_stats—, and want a query equivalent to:

SELECT species
     , sex
     , COUNT() AS count
  FROM penguins
 GROUP BY 1, 2
 ORDER BY 1, 2;

All the information we need is here. Since the cube contains the histograms for each element in the data cube, we just need to make a sum of them for each group of species. A solution (suggested to me by Éric Mauvière, thanks!), is to use UNNEST (documentation). Here, I’m using an intermediate TABLE to make it easier to write subsequent queries:

CREATE TABLE penguins_expand AS (
  SELECT island
       , species
       , UNNEST(map_keys(h)) AS sex
       , UNNEST(map_values(h)) AS count
    FROM penguins_stats
);

Our query is now:

SELECT species
     , IF(sex = 'N/A', null, sex) AS sex
     , SUM(count) AS count
  FROM penguins_expand
 GROUP BY 1, 2
 ORDER BY 1, 2;

(It seems a bit complicated to query a few hundred penguins, but this works identically with dozens of millions of rows!)

Grouping the keys

Another useful operation we can do is to group the keys according to some parameter. This time, let’s create histograms on a quantitative dimension:

SELECT species
     , island
     , sex
     , HISTOGRAM(body_mass_g)
  FROM penguins
 GROUP BY 1, 2, 3
 ORDER BY 1, 2, 3;

SELECT species
     , sex
     , 100.0 * SUM(
         IF (body_mass_g <= ${threshold}, count, 0)
       ) / SUM(count) AS percentage
  FROM penguins_mass_expand
 GROUP BY 1, 2;
